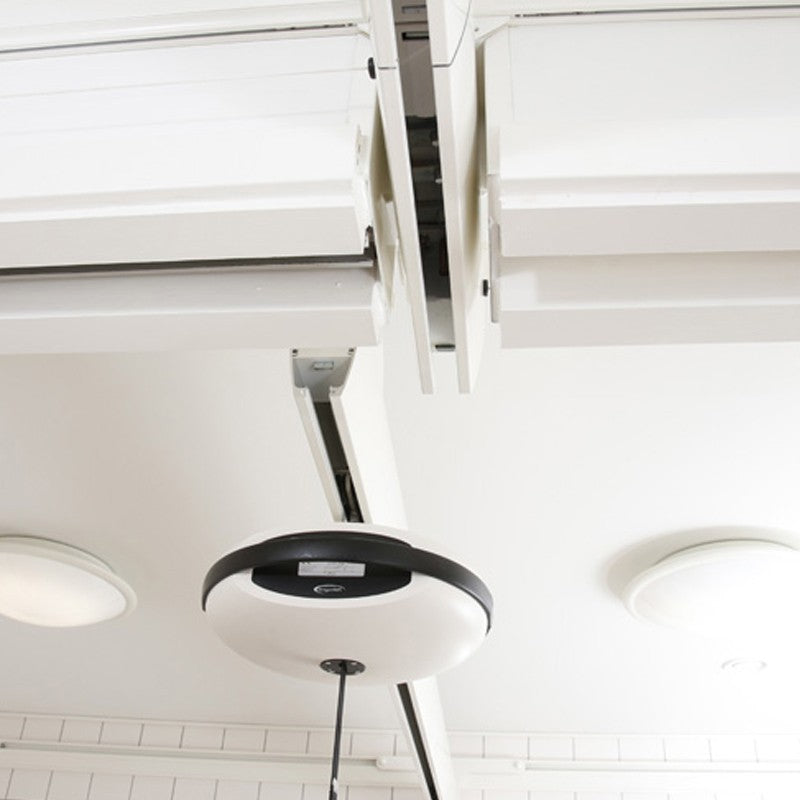

Roof crane - WINNCARE LUNA IPX4

Pre-order
Original price €1.700,00 - Original price €1.940,00
Original price
€1.700,00
€1.700,00 - €1.940,00
Current price €1.700,00

Custom product

Estimated delivery time: 7 to 14 days

Characteristics:

  • The LUNA IPX4 ceiling crane was designed for transfers for users weighing up to 200kg, making transfers safer and more comfortable.
  • The patented bar and winch system ensures safe and simple use, and the ergonomic control has a loading function and cable connection option at the top or bottom.
  • A distinctive feature of the Luna crane is the quick release mechanism: a simple twisting movement allows the crane to be separated from the rails in a matter of seconds, without the need for tools.
  • Another point of distinction for the Luna crane is the possibility of using the crane as fixed or portable equipment, in the same equipment.
  • The Luna crane can be combined with a wide range of wall or ceiling mounted rails (purchased on quote and separately), offering a complete transfer and lifting solution.
  • The Luna crane can also be used in one of the mobile structures, Mobile Flex 2 or Mobile Flex 4 (purchased separately).
  • It has a lifting range of up to 195cm.
  • Equipped with several safety elements, namely, electric and manual emergency lowering system, electric emergency stop, low battery LED indicator, battery charge indicator, patented safety system on the hanger and wall charging system.
  • The crane can be supported on the ceiling, wall, or one of the structures
  • Installation on the ceiling or wall is carried out by the Winncare Technical Team (included in the price).
  • 5-year warranty, subject to annual inspections.
Maximum user weight 220kg
Lifting range 195cm
Weight (without bar) 6.7kg
Measurements (without bar) 32 x 13cm
Protection IPX4
Loading 100- 240V, 0.5A
Charging time Approx. 4.5 – 5 hours to fully charge battery
Lifting speed 30mm/sec (user 89kg)
Number of lifts per load 50 lifts of 0.5m with 100 kg
Structure Aluminum
